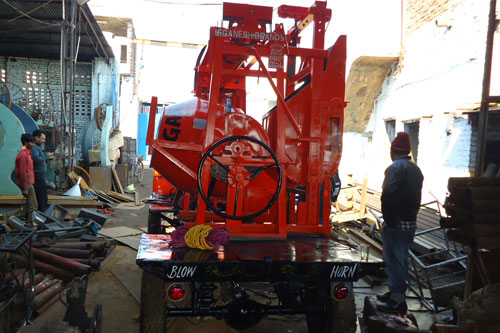

Concrete Mixer With Mechanical Hopper

The wide range of Concrete Mixer Machines With Hopper Type available with us is manufactured using high grade raw material, which ensures flawless finished products. Known for their sturdy construction and resistance to corrosion, these machines serve a long and smooth functional life. Offered at industry leading prices, these products are extremely popular among our clients in India and abroad. Concrete Mixer With Mechanical Hopper is specially designed with mechanical hopper for mass production. We provide 10 Hp air-cooled engine in this machine....



mechanical hopper concrete
Zoom
Concrete Mixer With Mechanical Hopper
Zoom
Concrete Mixer With Hopper
Zoom
Concrete Mixer <div class=
Zoom
Concrete Mixer type Mechanical Hopper
Zoom
mechanical hopper type concretee mixer
Zoom
mechanical hopper concrete mixture
Zoom
concrete mixture hopper
Zoom

Technical Specification

Model No. PI 400A
Capacity Unmixed : 10 Cft. Mixed: 7 Cft.
Prime Mover 10 Hp Diesel Engine/ Electric Motor
hooper  Bucket Made Of 3.5mm Heavy Sheet
Drum Speed 18/20 Rpm
Wheels  Pneumatic Tyre With Steel Hub & Bearing System, And Pressed Steel Plate Rims  or solid rubber wheels 4 No’s
Handi Yoke 100 X 50 X 5 Mm C Section M.S. Channel,  Bearing System
Chassis Heavy Duty M.S. 125 X 65 X 6 Mm Channel Chassis
Drive V-Belt (Branded Isi Mark C Section)
Mixing Drum Heavy Duty  M.S. 12 Mm Plate  Lower Drum, 4  Mm  Upper
Mixing Blade M.S. Blades For Efficient Mixing
Drum Type Tilting
Engine Cabin 16 G (1.6 Mm) Thick
Weight 1500 Kg Approx.
All gear Graded casting for long life
hooper Operation Mechanical Type
