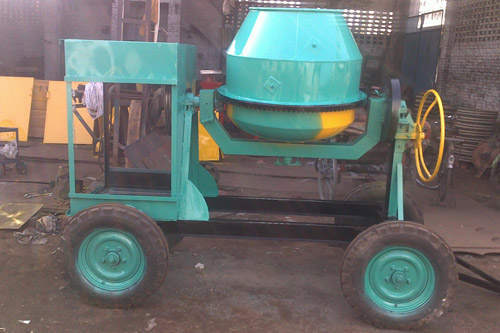

Concrete Mixer with cast iron drum Type
The wide range of product Concrete Mixer bed type offered by us is contrived using best quality material which is used for mixing of sand, cement and water for concrete, as these are extensively used in construction and allied industries. These are highly acknowledged by our clients for its superb strength, reliability and high service life and we also offer customized solutions to meet the requirement of our esteemed clients and make them gain at competitive prices. We offer these concrete mixers bed type in different sizes and models as per the choice of the consumer...
Technical Specification
| Model No. | PI 201A cast iron drum type mixer |
| Capacity | Unmixed : 10 Cft. Mixed: 7 Cft. |
| Prime Mover | 3 h.p.Electric Motor/diesel engine |
| All Gear | Graded casting for long life |
| Drum Speed | 18/20 Rpm |
| Wheels |  Pneumatic Tyre With Steel Hub & Bearing System, And Pressed Steel Plate Rims â€" 4 No’s |
| Handi Yoke | 100 X 50 X 5 Mm C Section M.S. Channel, Â Bearing System |
| Chassis | Heavy Duty M.S. 100 X 50 X 6 Mm Channel bed type chassis |
| Drive | V-Belt (Branded Isi Mark B Section) |
| Mixing Drum | Heavy Duty M.S. 12 Mm Plate  Lower Drum, 4  Mm Upper |
| Mixing Blade | M.S. Blades For Efficient Mixing |
| Drum Type | Tilting |
| Â Cover | 16 G (1.6 Mm) Thick cover for motor & pully |
| Weight | 800 Kg Approx. |
| Feature | Specially designed for tiles making & block making plant |
| Bearing | All bearing taper roller Type |
