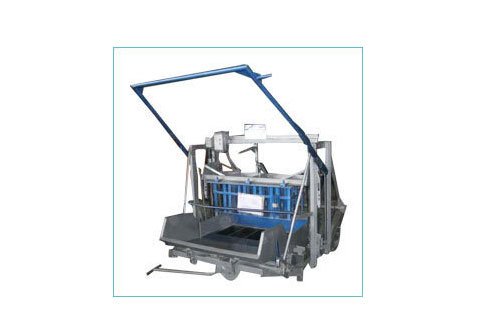

Concrete Block Making Machine Manual Type

It is the High Density Concrete Block Making Machine, wooden or steel pallets fed and located by the high frequency vibrating table. Mould is filled manually which is over the pallet. The mix is pressed and vibrated on both sides simultaneously, resulting in voids free, high density blocks with excellent texture and finish.

The blocks thus formed are voids free, 30% more denser which makes the block less water obsorbtion and manifold increase in satrength which is not at all achievable in egg laying and hand operated machines. Formed blocks are dragged away from the Concrete Block Making Machine Manual Type.

Zoom

Technical Specification

1. Power	1.5 HP Single/Three Phase motor (or) 4.4 HP Air Cooled diesel engine. The motors driving vibrators are hinged in the frame to give free movement to the table.
2. Vibrations	6000 Hz.
3. Amplitude	Adjustable
4. Moulding Area	350 X 750 mm (max)
4. Weight	350 Kg (approx)
5. Dimensions	840 X 725 X 1800 mm (max)
6. Capacity	250-300 Strokes/Shift
	200x200x400 1 block / stroke 250-5000 Blocks/Shift 150x200x400 1 block / stroke 250-5000 Blocks/Shift 100x200x400 2 blocks / stroke 500-1000 Blocks/Shift
